10XP

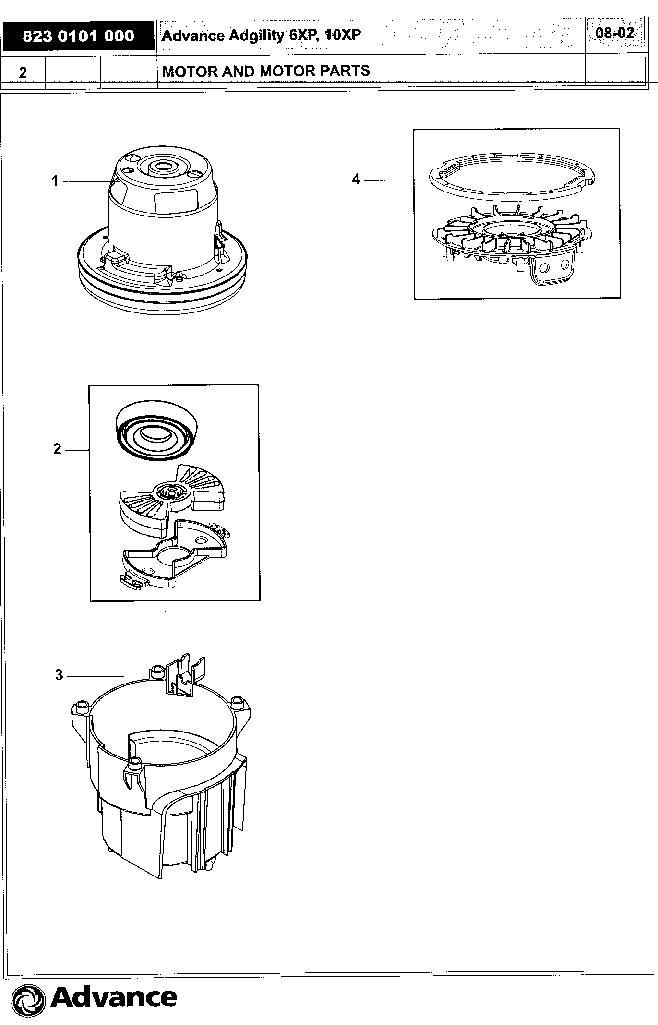

Item

Part No.

Qty.

Description

1

147 1109 500

1

Fan unit 100 -120V, 1300W

2

147 1111 500

1

Motor suspension kit

3

147 1088 510

1

Motor cover, UL-approved

4

147 1086 510

1

Chassis, UL-approved

Item

Part No.

Qty.

Description

Note

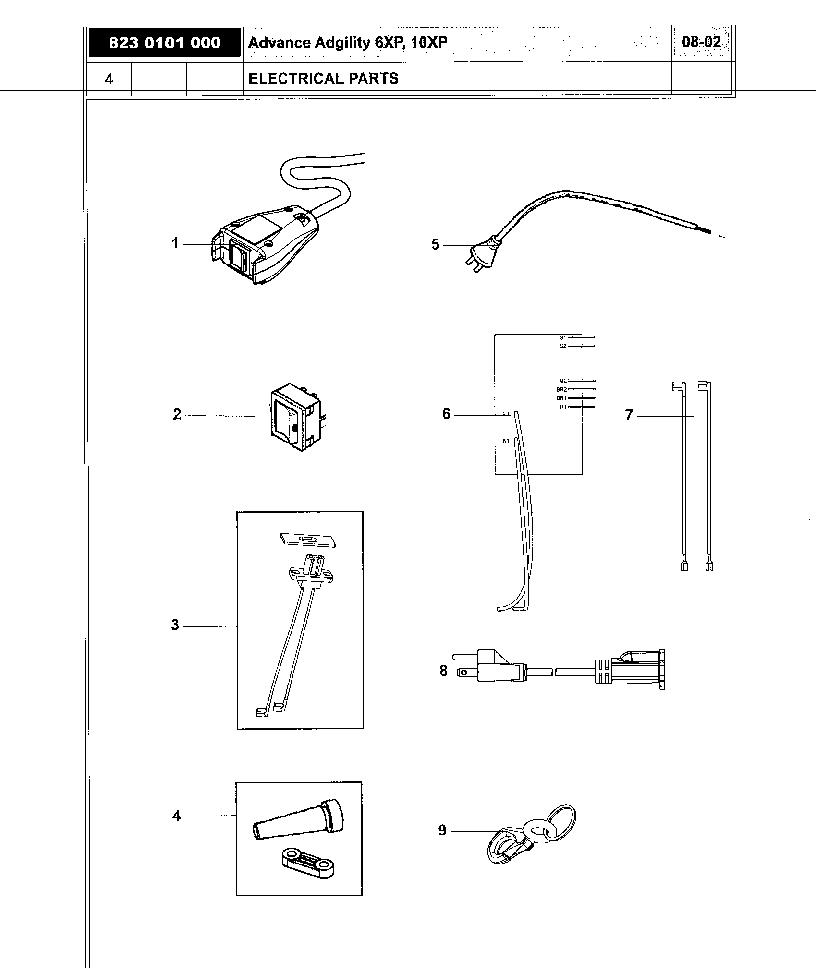

1

147 1105 500

1

Switch opl.

2

140 5496 510

1

Switch

3

140 8497 530

1

Connector

4

140 7035 510

1

Sleeve kit

Anti strain dip

5

140 3859 500

1

Cord set US/TW plug,
machine end.

1,3 ft (400 mm)

6

147 1231 510

1

Curcuit board 100-120V

7

140 7042 520

1

Internal wire kit

2 Wires incl.

8

147 1243 500

1

Cord extension

50 ft (15.5 m)
Colour: Yellow.
16AWG

9

147 1346 500

1

Anti strain snap hook

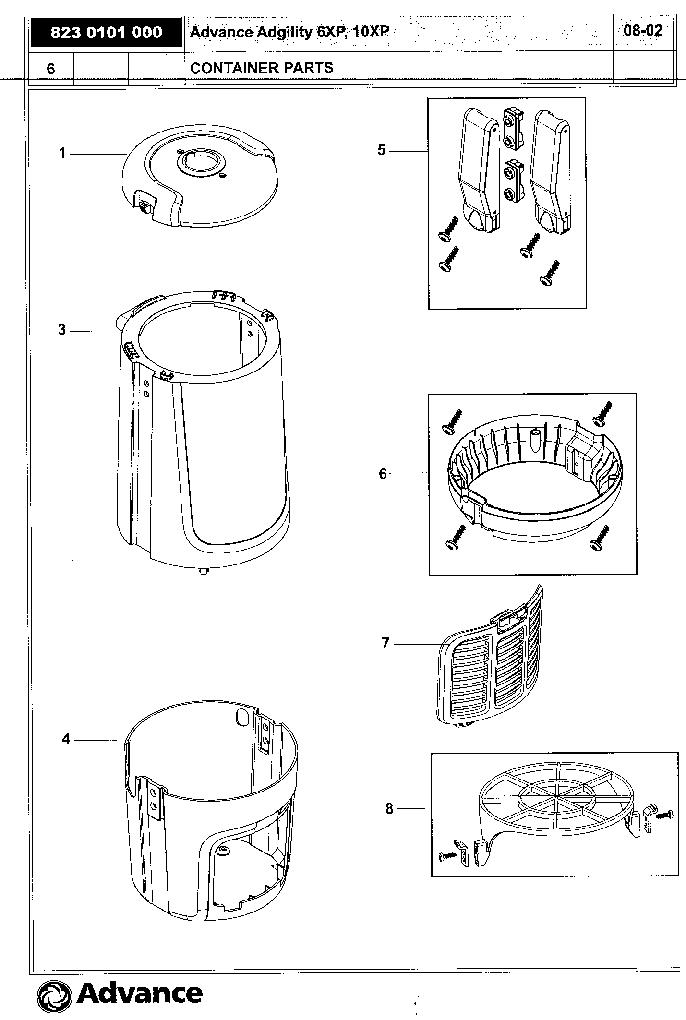

Item

Part No.

Qty.

Description

Note

1

147 1077 500

1

Outer lid, for 6XP

Grey

1

147 1080 500

1

Outer lid, for 10XP

Grey

3

147 1076 500

1

Container, for 6XP

Grey

3

147 1079 500

1

Container, for 10XP

Grey

4

147 1075 520

1

Cover outer

4

147 1075 530

1

Cover outer, power outlet

Gasket incl.

5

147 1101 500

1

Latch kit

2 latches,
screws and
screw towers.

6

147 1078 500

1

Adapter, for 10XP

Screws incl.

7

147 1082 500

1

Grid exhaust

8

147 1115 500

1

Basket sack filter

Hooks and
screws incl.

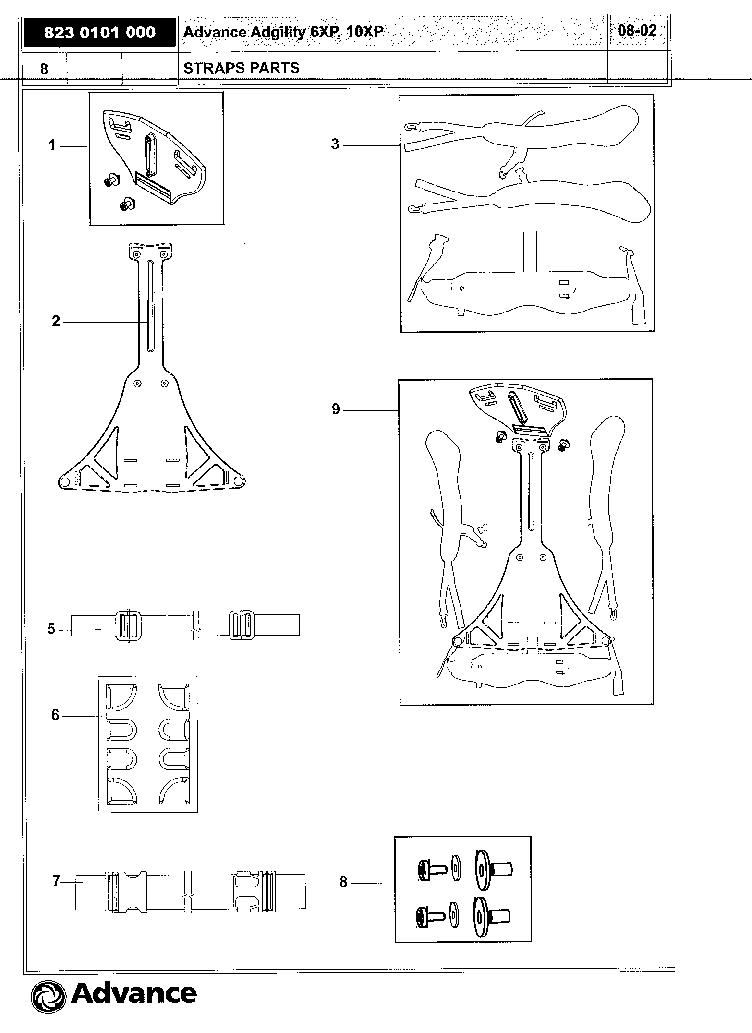

Item

Part No.

Qty.

Description

Note

1

147 1092 500

1

Adjusting plate

2

147 1091 500

1

Harness support

3

147 1246 500

1

Harness premium

Screws and
washers incl.

5

147 1247 500

1

Lifting strap

6

147 1248 500

1

Padding, back plate

7

147 1249 500

1

Extension belt

L=400 mm

8

147 1246 600

1

Screw kit

For harness
premium

9

147 1246 510

1

Harness premium cpl.

08-02

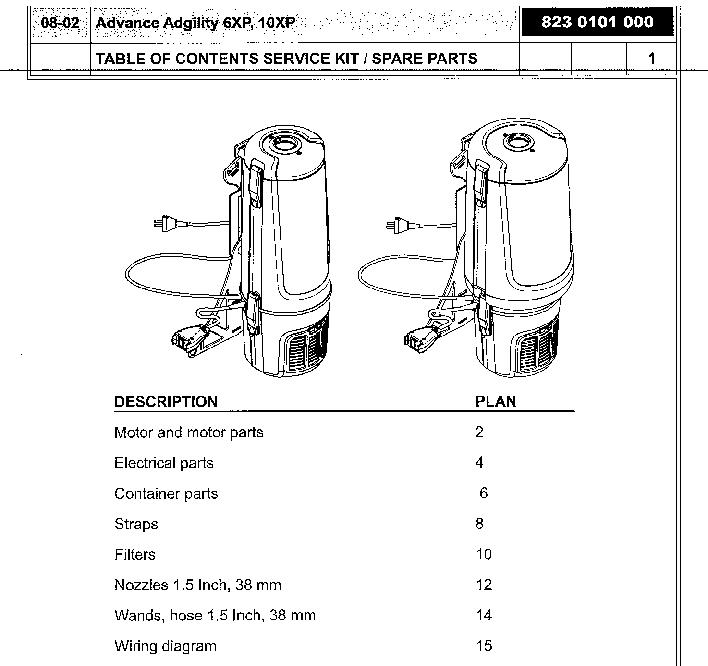

Advance Adgility 6XP, 10XP

823 0101 000

FILTERS

11

Item

Part No.

Qty.

Description

1

147 1104 500

1

HEPA-filter cpl.

2

147 1100 500

1

Sack filter, for 6XP

2

147 1099 500

1

Sack filter, for 10XP

3

147 1089 500

1

Exhaust filter

3 pes.

4

147 1098 500

1

Dustbag, for 6XP
(1.3 Gallon, 5L)

5 pes.

4

147 1097 500

1

Dustbag, for 10XP
(2.6 Gallon, 10 L)

5 pes.

5

147 1095 500

1

Prefilter

3 psc.

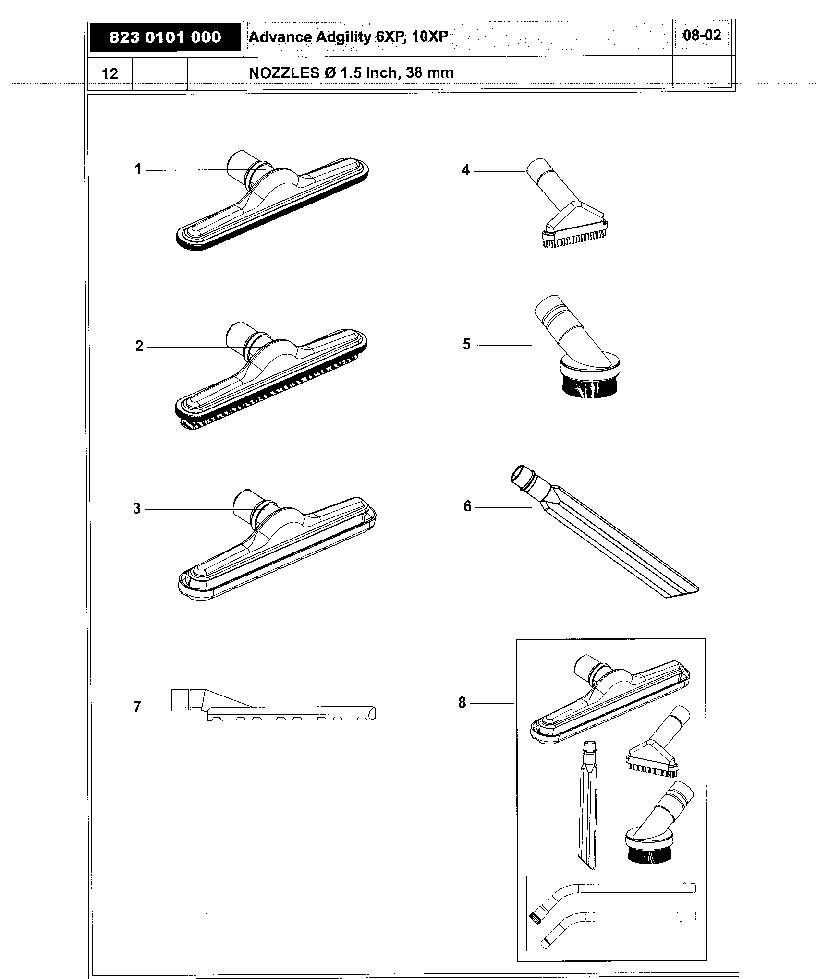

Item

Part No.

Qty.

Description

Note

1

147 1383 520

1

Scallop carpet floor tool

2

147 1383 510

1

Hard floor brush tool

3

147 1383 500

1

Quick-Glide multi surface

floor tool

4

147 1384 500

1

Upholstery tool

5

147 1385 500

1

Dust tool

6

147 1386 500

1

Crevice tool

7

140 7547 500

1

Paddle nozzle

8

147 1388 500

5

Standard accessory kit

Kit with Item
#3,4,5,6
and a S-
wand.

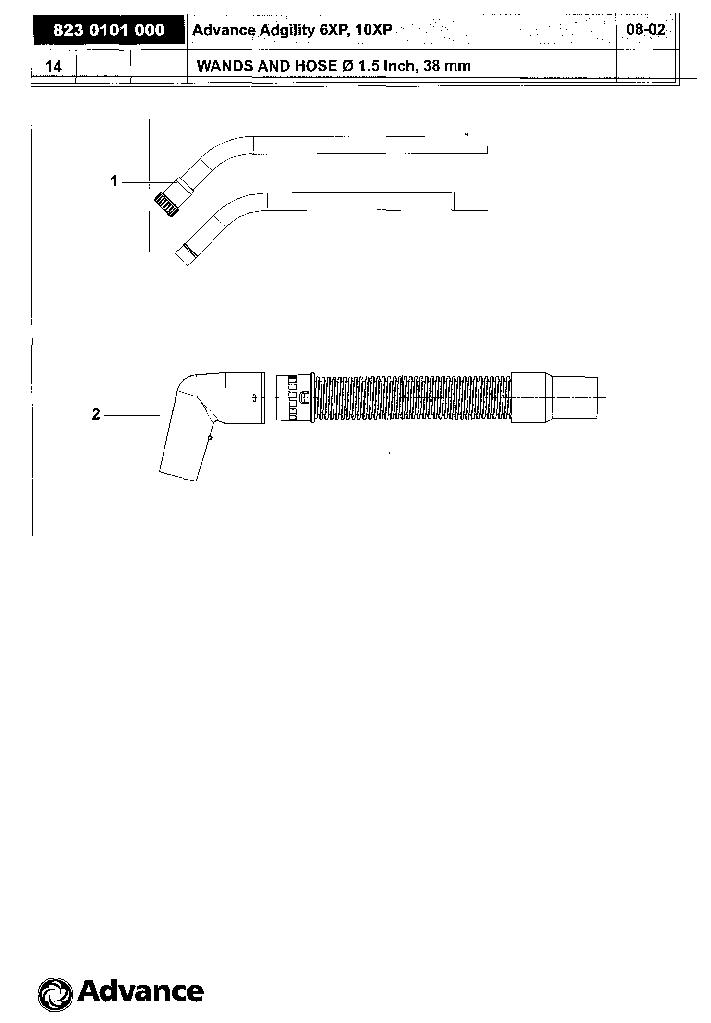

Item

Part No.

Qty.

Description

Note

1

147 1387 500

1

S-wands

Aluminium

2

147 1237 500

1

Hose cpL 49 in. (1250 mm)
