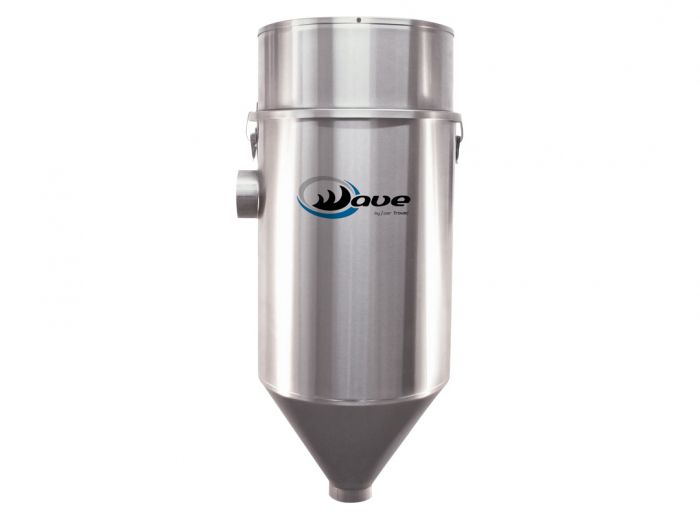

The Wave unit is equipped with our No-Splash System: a deflector prevents whirlpools from forming inside the Wave, which in turn decreases the possibility of any water or foam reaching the vacuum intakes or the motor(s). It is very sanitary: there's an automatic rinse cycle after every drainage to eliminate dirt particles and scum formation. There is no motor in the unit itself: you can use it with our HD motor heads or any central vacuum unit. Creating a fully automatic, self-cleaning, and self-flushing system has never been so easy and affordable!
**It is important to buy a set of entry and exit of air at the purchase of the Wave.
ADVANTAGES OF THE WAVE "WET & DRY AUTOMATIC SYSTEM"
- SINGLE USER - Wave with 1 PVC intake of 2" pipe diameter.
- Easy to use: Can be installed with any central vacuum system or with HD motor units.
- Works with a 110-240 volts AC to 24 volts DC transformer.
- Stainless steel canister: will not rust and meets food industry standards.
- No maintenance: No filter, grid, or net inside the unit to clean, unlike other brands.
- Automatically empties through the sanitary drain.
- The inner deflector prevents water from getting into the motor area.
- Hygienic, as it is rinsed off after each draining, and eliminates dirt and foam.
SPECIFICATIONS
Height: 46"
Diameter: 15"
Capacity: 4.5 Gal.
Supply: 1/2" cold water
Fill-up time: Between 5 & 10 minutes - depending on water pressure
Emptying time: About 10 seconds
1 OR 2 SIMULTANEOUS USERS - Wave with 2 ABS intakes of 3" diameter piping
Better airflow and calibration of multiple user networks.
For 2 simultaneous users, a main trunk line of 3" diameter piping is needed, with 2" pipe branches for each inlet. More than 2 inlets may be run, but only 2 may be used at the same time. A more specific breakdown of each configuration is shown below:
1 MOTOR UNIT & 1 WAVE INTECEPTOR
| Airwatts | 495 |
| Air Flow (CFM) | 111 |
| Water Lift | 125" |
| Maximum Amps | 14,5 |
| 7" Diameter Motor | 1 |
| Motor Stages | 2 |
IN USE SPECIFICATIONS - WITH A 1 1/4" OR 1 3/8" X 30' HOSE
- Maximum surface: 10,000 sq. ft.
- Maximum inlets: 10
- Number of simultaneous users: 1 ONLY
- Maximum distance of furthest inlet from the wave unit: 85'
- Maximum total piping length - 320'
2 MOTOR UNITS IN SERIES & 1 WAVE INTERCEPTOR
| Airwatts | 990 |
| Air Flow (CFM) | 120 |
| Water Lift | 215" |
| Maximum Amps | 14,5 x 2 |
| 7" Diameter Motor | 2 |
| Motor Stages | 2 + 2 |
IN USE SPECIFICATIONS - WITH A 1 1/4" OR 1 3/8" X 30' HOSE
- Maximum surface: 35,000 sq. ft.
- Maximum inlets: 40
- Number of simultaneous users: 1 ONLY
- Maximum distance of furthest inlet from the wave unit: 269'
- Maximum total piping length - 1,280'
3 MOTOR UNITS (2 IN SERIES & 1 IN PARALLEL) & 1 WAVE INTERCEPTOR
| Airwatts | 1,485 |
| Air Flow (CFM) | 230 |
| Water Lift | 160" |
| Maximum Amps | 14,5 x 3 |
| 7" Diameter Motor | 3 |
| Motor Stages | 2 + 2 + 2 |
IN USE SPECIFICATIONS - WITH A 1 1/4" OR 1 3/8" X 30' HOSE
- Maximum surface: 50,000 sq. ft.
- Maximum inlets: 55
- *Number of simultaneous users: 1 TO 2
- Maximum distance of furthest inlet from the wave unit: 340' (SINGLE USER) OR 95' (2 USERS)
- Maximum total piping length - 1,689' ( SINGLE USER) OR 300' (2 USERS)
*1 user = 2" PVC intake
*2 users = 3" ABS intake / not to be used with the 1 1/2" diameter hose.
4 MOTOR UNITS (2 IN SERIES & 2 IN PARALLEL) & 1 WAVE INTERCEPTOR
| Airwatts | 1,980 |
| Air Flow (CFM) | 230 |
| Water Lift | 215" |
| Maximum Amps | 14,5 x 4 |
| 7" Diameter Motor | 4 |
| Motor Stages | 2 + 2 + 2 + 2 |
IN USE SPECIFICATIONS - WITH A 1 1/4" OR 1 3/8" X 30' HOSE
- Maximum surface: 100,000 sq. ft.
- Maximum inlets: 110
- *Number of simultaneous users: 1 TO 2
- Maximum distance of furthest inlet from the wave unit: 535' (SINGLE USER) OR 127' (2 USERS)
- Maximum total piping length - 3,400' ( SINGLE USER) OR 400' (2 USERS)
*1 user = 2" PVC intake
*2 users = 3" ABS intake / not to be used with the 1 1/2" diameter hose.
