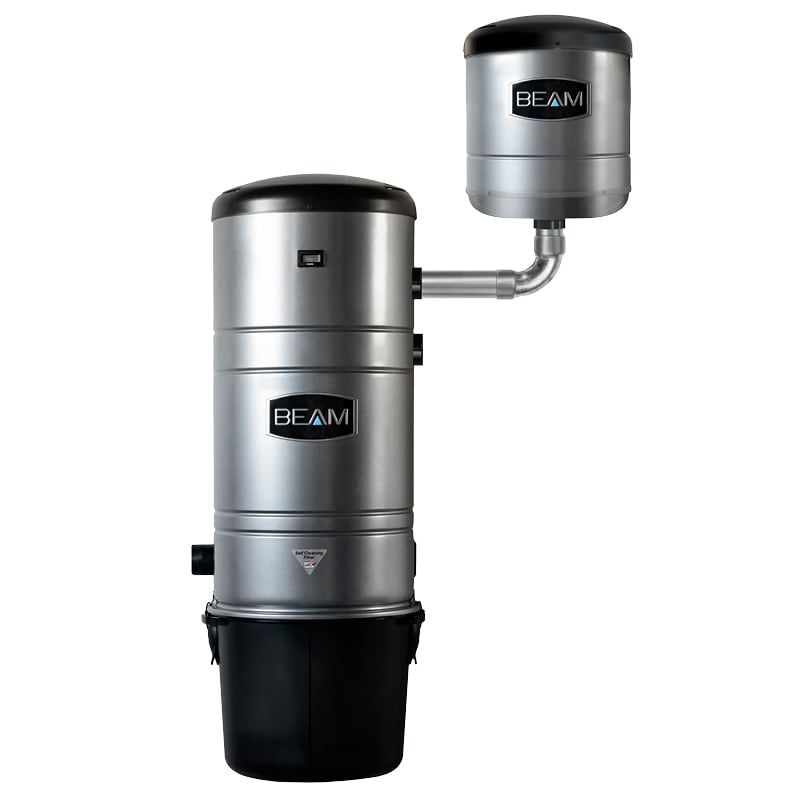

Beam (Model 4500)
*PRODUCT NOT CARRIED IN STORE* Please account for 1-3 weeks for shipping
Model Number: ABEAM4500A
Model Name: 4500
Equipped with two separate motors that can be connected in series or parallel as needed, this central vacuum delivers outstanding performance. It is perfectly suited for cleaning large areas, especially when used with a long hose and in installations with an extensive duct network and multiple inlets, whether traditional or Retraflex®.
This model cannot be installed in an enclosed space. For specific installation details, please refer to the user manual.
Recommendations:
- Type of residence: large
- Approximate area : 20,000 ft² (1 858 m²)
*For informational purposes only. Please consult a central vacuum professional to find the correct-sized unit for your home.
Other information:
- Owner’s manual
- Warranty: 10 years or 750h (parts), 1 year (labor)
Specifications for parallel use:
- Air Flow: 273.4 PCM / CFM
- Water lift (H2O): 149.2 ” / 3790 mm
- Sound level: 70 dB
- Height : 16.9″ / 43 cm
- Diameter: 11.9 / 30.2 cm
Specifications
-
Power
Air Flow: 136.7 CFM
AirWatts: 1,354 AW
Maximum Amps: 14.6 A
Motor Type: 2+2 turbines / 2 motors / 6.6"
Sound Level: 72 dBA
Voltage Rating: 240 V -
Weight & Dimensions
Diameter: 14.1"
Height: 42.1"
Weight: *Coming Soon* -
Vacuum Specifications
Dust Capacity: Bagged - 5.3 gal | Bagless - 5.9 gal.
Filtration Type: Hybrid Gore
Water Lift Suction: 254 '' of H2
